Implementing SAGA Orchestration with Spring Boot State Machine and Kafka: A Production-Ready Guide

Introduction

Managing distributed transactions across microservices is one of the most challenging aspects of modern system architecture. In my previous article on SAGA Design Pattern, I covered the fundamentals of SAGA — what it is, when to use it, and the differences between orchestration and choreography approaches.

In this article, we’ll take those concepts and build a production-ready implementation using Spring Boot State Machine and Apache Kafka. We’ll focus on the orchestration approach and demonstrate an innovative abstraction layer that makes your system portable across different messaging technologies.

What you’ll learn:

• How to use Spring State Machine for SAGA orchestration

• Building a messaging abstraction layer for technology independence

• Implementing compensating transactions and idempotency

• Testing strategies for distributed sagas

• Production deployment considerations

Prerequisites:

• Understanding of SAGA fundamentals (read here)

• Familiarity with Spring State Machine (read my article)

• Basic knowledge of Kafka

Let’s dive into the implementation!

Our Use Case: E-commerce Order Processing

We’ll implement a realistic order processing system with four microservices:

1. Order Service (Orchestrator) — Coordinates the entire saga

2. Payment Service — Processes payments and refunds

3. Inventory Service — Reserves and releases inventory

4. Shipping Service — Schedules shipments

Failure Scenarios:

• Payment fails → Cancel order

• Inventory unavailable → Refund payment → Cancel order

• Shipping fails → Release inventory → Refund payment → Cancel order

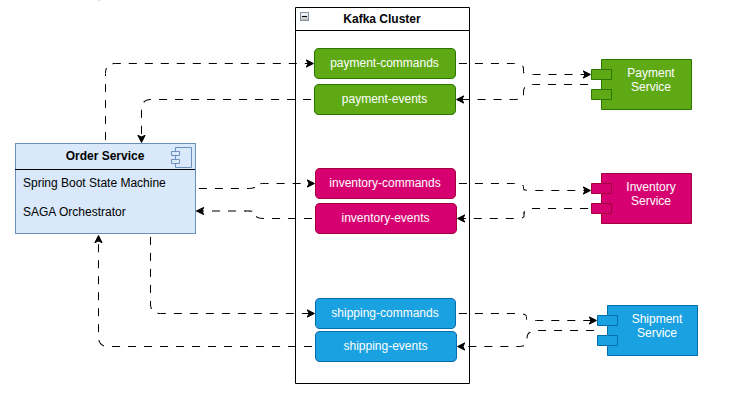

Architecture: Multi-Module Spring Boot Project

spring-saga-orchestrator/
├── common-library/              # Shared components
│   ├── commands/               # BaseCommand and service commands
│   ├── events/                 # BaseEvent and service events
│   ├── constant/               # KafkaTopics
│   ├── publisher/              # MessagePublisher interface
│   └── listener/               # DomainEventListener, KafkaListenerRegistrar
├── order-service/              # Orchestrator (Port: 8081)
├── payment-service/            # Payment processing (Port: 8082)
├── inventory-service/          # Inventory management (Port: 8083)
└── shipping-service/           # Shipping operations (Port: 8084)

Key Decisions:

• Kafka for reliable async messaging

• Spring State Machine for workflow orchestration

• Messaging abstraction layer for technology portability

• Common library for shared domain models

The Game-Changer: Kafka Abstraction Layer

The most powerful aspect of this implementation is the abstraction layer that completely decouples services from Kafka-specific APIs. This enables seamless migration to other messaging systems (Pulsar, RabbitMQ, etc.) with zero business logic changes.

1. Centralized Topic Management

// common-library/src/main/java/com/codeexpert/common/constant/KafkaTopics.java
public class KafkaTopics {
    public static final String PAYMENT_COMMAND = “payment-command-topic”;
    public static final String PAYMENT_EVENT = “payment-event-topic”;
    public static final String INVENTORY_COMMAND = “inventory-command-topic”;
    public static final String INVENTORY_EVENT = “inventory-event-topic”;
    public static final String SHIPPING_COMMAND = “shipping-command-topic”;
    public static final String SHIPPING_EVENT = “shipping-event-topic”;
}

2. Generic Message Publisher

// Interface
public interface MessagePublisher {
    <T extends DomainEvent> void publish(String topic, String key, T message);
}

// Kafka Implementation
@Component
public class KafkaMessagePublisher implements MessagePublisher {
    private final KafkaTemplate<String, Object> kafkaTemplate;

    @Override
    public <T extends DomainEvent> void publish(String topic, String key, T message) {
        kafkaTemplate.send(topic, key, message);
    }
}

Why This Matters: Services depend on MessagePublisher, not Kafka. Want to switch to Pulsar? Just create PulsarMessagePublisher implementing the same interface—no other code changes needed!

3. Domain Event Hierarchy

public interface DomainEvent {} // Marker interface

@Data
@SuperBuilder
@NoArgsConstructor
public abstract class BaseCommand implements DomainEvent {
    private String sagaId;
    private String orderId;
    private Instant timestamp;
}

@Data
@SuperBuilder
@EqualsAndHashCode(callSuper = true)
public class ProcessPaymentCommand extends BaseCommand {
    private String userId;
    private BigDecimal amount;
}

4. Programmatic Listener Registration

No more @KafkaListener annotations! Services register listeners programmatically:

@Component
public class KafkaListenerRegistrar {
    private final ConcurrentKafkaListenerContainerFactory<String, Object> factory;

    public <T extends DomainEvent> void registerListener(
            String topic, String groupId,
            DomainEventListener listener, Class<T> eventType) {

        ContainerProperties props = new ContainerProperties(topic);
        props.setGroupId(groupId);
        props.setMessageListener((MessageListener<String, T>) record ->
            listener.onEvent(record.value())
        );

        ConcurrentMessageListenerContainer<String, Object> container =
            factory.createContainer(props);
        container.start();
    }
}

Service Registration:

@SpringBootApplication
public class PaymentServiceApplication {

    @Autowired
    private KafkaListenerRegistrar registrar;

    @Autowired
    private PaymentCommandListener listener;

    @PostConstruct
    public void registerListeners() {
        registrar.registerListener(
            KafkaTopics.PAYMENT_COMMAND,
            “payment-service-group”,
            listener,
            ProcessPaymentCommand.class
        );
    }
}

SAGA Orchestrator with Spring State Machine

Since I’ve covered Spring State Machine basics in my previous article, I’ll focus on the SAGA-specific implementation.

State Machine Configuration

@Configuration
@EnableStateMachine
public class OrderSagaStateMachineConfig
        extends StateMachineConfigurerAdapter<OrderState, OrderEvent> {

    @Autowired
    private MessagePublisher messagePublisher;

    @Override
    public void configure(StateMachineStateConfigurer<OrderState, OrderEvent> states)
            throws Exception {
        states
            .withStates()
            .initial(OrderState.PENDING)
            .state(OrderState.PAYMENT_PROCESSING)
            .state(OrderState.PAYMENT_COMPLETED)
            .state(OrderState.INVENTORY_RESERVING)
            .state(OrderState.INVENTORY_RESERVED)
            .state(OrderState.SHIPPING_SCHEDULING)
            .end(OrderState.COMPLETED)
            .end(OrderState.CANCELLED);
    }

    @Override
    public void configure(StateMachineTransitionConfigurer<OrderState, OrderEvent> transitions)
            throws Exception {
        transitions
            // Forward flow
            .withExternal()
                .source(OrderState.PENDING)
                .target(OrderState.PAYMENT_PROCESSING)
                .event(OrderEvent.ORDER_CREATED)
                .action(initiatePaymentAction())
            .and()
            .withExternal()
                .source(OrderState.PAYMENT_PROCESSING)
                .target(OrderState.PAYMENT_COMPLETED)
                .event(OrderEvent.PAYMENT_PROCESSED)
                .action(reserveInventoryAction())
            .and()
            .withExternal()
                .source(OrderState.PAYMENT_COMPLETED)
                .target(OrderState.INVENTORY_RESERVED)
                .event(OrderEvent.INVENTORY_RESERVED)
                .action(scheduleShippingAction())
            .and()
            .withExternal()
                .source(OrderState.INVENTORY_RESERVED)
                .target(OrderState.COMPLETED)
                .event(OrderEvent.SHIPPING_SCHEDULED)

            // Compensation flows
            .and()
            .withExternal()
                .source(OrderState.PAYMENT_PROCESSING)
                .target(OrderState.CANCELLED)
                .event(OrderEvent.PAYMENT_FAILED)
            .and()
            .withExternal()
                .source(OrderState.PAYMENT_COMPLETED)
                .target(OrderState.CANCELLED)
                .event(OrderEvent.INVENTORY_FAILED)
                .action(compensatePaymentAction())
            .and()
            .withExternal()
                .source(OrderState.INVENTORY_RESERVED)
                .target(OrderState.CANCELLED)
                .event(OrderEvent.SHIPPING_FAILED)
                .action(compensateInventoryAndPaymentAction());
    }

    @Bean
    public Action<OrderState, OrderEvent> initiatePaymentAction() {
        return context -> {
            CreateOrderCommand order = (CreateOrderCommand) context
                .getExtendedState().getVariables().get(”orderCommand”);

            ProcessPaymentCommand cmd = ProcessPaymentCommand.builder()
                .sagaId(order.getSagaId())
                .orderId(order.getOrderId())
                .userId(order.getUserId())
                .amount(order.getAmount())
                .timestamp(Instant.now())
                .build();

            messagePublisher.publish(
                KafkaTopics.PAYMENT_COMMAND,
                cmd.getOrderId(),
                cmd
            );
        };
    }

    @Bean
    public Action<OrderState, OrderEvent> compensatePaymentAction() {
        return context -> {
            CreateOrderCommand order = (CreateOrderCommand) context
                .getExtendedState().getVariables().get(”orderCommand”);

            RefundPaymentCommand cmd = RefundPaymentCommand.builder()
                .sagaId(order.getSagaId())
                .orderId(order.getOrderId())
                .userId(order.getUserId())
                .amount(order.getAmount())
                .timestamp(Instant.now())
                .build();

            messagePublisher.publish(
                KafkaTopics.PAYMENT_COMMAND,
                cmd.getOrderId(),
                cmd
            );
        };
    }
}

Orchestrator Service

@Service
public class OrderSagaOrchestrator {

    private final StateMachine<OrderState, OrderEvent> stateMachine;

    public void startSaga(CreateOrderCommand command) {
        stateMachine.getExtendedState()
            .getVariables()
            .put(”orderCommand”, command);

        stateMachine.sendEvent(OrderEvent.ORDER_CREATED);
    }

    public void handlePaymentSuccess(PaymentProcessedEvent event) {
        stateMachine.sendEvent(OrderEvent.PAYMENT_PROCESSED);
    }

    public void handlePaymentFailure(PaymentFailedEvent event) {
        stateMachine.sendEvent(OrderEvent.PAYMENT_FAILED);
    }

    public void handleInventoryReserved(InventoryReservedEvent event) {
        stateMachine.sendEvent(OrderEvent.INVENTORY_RESERVED);
    }

    public void handleInventoryFailed(InventoryFailedEvent event) {
        stateMachine.sendEvent(OrderEvent.INVENTORY_FAILED);
    }
}

Implementing Services with Idempotency

Payment Service

@Service
public class PaymentService {

    private final MessagePublisher messagePublisher;
    private final Set<String> processedSagaIds = ConcurrentHashMap.newKeySet();
    private final Map<String, BigDecimal> userBalances = new ConcurrentHashMap<>();

    public void processPayment(ProcessPaymentCommand command) {
        // Idempotency check
        String key = command.getSagaId() + “-payment”;
        if (processedSagaIds.contains(key)) {
            return; // Already processed
        }

        try {
            BigDecimal balance = userBalances.getOrDefault(
                command.getUserId(), BigDecimal.ZERO);

            if (balance.compareTo(command.getAmount()) >= 0) {
                // Deduct amount
                userBalances.put(command.getUserId(),
                    balance.subtract(command.getAmount()));

                processedSagaIds.add(key);

                // Publish success
                messagePublisher.publish(
                    KafkaTopics.PAYMENT_EVENT,
                    command.getOrderId(),
                    PaymentProcessedEvent.builder()
                        .sagaId(command.getSagaId())
                        .orderId(command.getOrderId())
                        .build()
                );
            } else {
                // Publish failure
                messagePublisher.publish(
                    KafkaTopics.PAYMENT_EVENT,
                    command.getOrderId(),
                    PaymentFailedEvent.builder()
                        .sagaId(command.getSagaId())
                        .orderId(command.getOrderId())
                        .reason(”Insufficient balance”)
                        .build()
                );
            }
        } catch (Exception e) {
            // Publish failure
            messagePublisher.publish(
                KafkaTopics.PAYMENT_EVENT,
                command.getOrderId(),
                PaymentFailedEvent.builder()
                    .sagaId(command.getSagaId())
                    .orderId(command.getOrderId())
                    .reason(e.getMessage())
                    .build()
            );
        }
    }

    public void refundPayment(RefundPaymentCommand command) {
        String key = command.getSagaId() + “-refund”;
        if (processedSagaIds.contains(key)) {
            return;
        }

        BigDecimal balance = userBalances.getOrDefault(
            command.getUserId(), BigDecimal.ZERO);
        userBalances.put(command.getUserId(),
            balance.add(command.getAmount()));

        processedSagaIds.add(key);
    }
}

Production Note: In production, store processedSagaIds in Redis or a database with TTL for cleanup.

Testing Your SAGA

Unit Testing State Transitions

@SpringBootTest
public class OrderSagaStateMachineTest {

    @Autowired
    private StateMachine<OrderState, OrderEvent> stateMachine;

    @Test
    public void testSuccessfulOrderFlow() {
        stateMachine.start();

        assertEquals(OrderState.PENDING, stateMachine.getState().getId());

        stateMachine.sendEvent(OrderEvent.ORDER_CREATED);
        assertEquals(OrderState.PAYMENT_PROCESSING, stateMachine.getState().getId());

        stateMachine.sendEvent(OrderEvent.PAYMENT_PROCESSED);
        assertEquals(OrderState.PAYMENT_COMPLETED, stateMachine.getState().getId());

        stateMachine.sendEvent(OrderEvent.INVENTORY_RESERVED);
        assertEquals(OrderState.INVENTORY_RESERVED, stateMachine.getState().getId());

        stateMachine.sendEvent(OrderEvent.SHIPPING_SCHEDULED);
        assertEquals(OrderState.COMPLETED, stateMachine.getState().getId());
    }

    @Test
    public void testInventoryFailureCompensation() {
        stateMachine.start();

        stateMachine.sendEvent(OrderEvent.ORDER_CREATED);
        stateMachine.sendEvent(OrderEvent.PAYMENT_PROCESSED);
        stateMachine.sendEvent(OrderEvent.INVENTORY_FAILED);

        assertEquals(OrderState.CANCELLED, stateMachine.getState().getId());
    }
}

Integration Testing with Testcontainers

@SpringBootTest
@Testcontainers
public class OrderSagaIntegrationTest {

    @Container
    static KafkaContainer kafka = new KafkaContainer(
        DockerImageName.parse(”confluentinc/cp-kafka:latest”)
    );

    @DynamicPropertySource
    static void kafkaProperties(DynamicPropertyRegistry registry) {
        registry.add(”spring.kafka.bootstrap-servers”,
            kafka::getBootstrapServers);
    }

    @Test
    public void testCompleteOrderSaga() throws Exception {
        CreateOrderCommand command = CreateOrderCommand.builder()
            .sagaId(UUID.randomUUID().toString())
            .orderId(UUID.randomUUID().toString())
            .userId(”user123”)
            .productId(”product456”)
            .quantity(2)
            .amount(new BigDecimal(”100.00”))
            .build();

        orderController.createOrder(command);

        // Wait and verify
        Thread.sleep(3000);
        // Assert order status is COMPLETED
    }
}

Monitoring and Observability

State Transition Logging

@Component
public class SagaMonitoringListener
        extends StateMachineListenerAdapter<OrderState, OrderEvent> {

    @Autowired
    private MeterRegistry meterRegistry;

    @Override
    public void stateChanged(State<OrderState, OrderEvent> from,
                            State<OrderState, OrderEvent> to) {
        logger.info(”State transition: {} -> {}”, from.getId(), to.getId());

        meterRegistry.counter(”saga.state.transition”,
            “from”, from.getId().name(),
            “to”, to.getId().name()
        ).increment();
    }
}

Key Metrics to Track

@Component
public class SagaMetrics {
    private final MeterRegistry registry;

    public void recordSagaCompleted(long durationMs) {
        registry.counter(”saga.completed”).increment();
        registry.timer(”saga.duration”)
            .record(durationMs, TimeUnit.MILLISECONDS);
    }

    public void recordSagaFailed(String reason) {
        registry.counter(”saga.failed”, “reason”, reason).increment();
    }

    public void recordCompensation(String step) {
        registry.counter(”saga.compensation”, “step”, step).increment();
    }
}

Running the System

Build and Run

# Build
./gradlew clean build

# Run services (separate terminals)
java -jar order-service/build/libs/order-service-1.0-SNAPSHOT.jar
java -jar payment-service/build/libs/payment-service-1.0-SNAPSHOT.jar
java -jar inventory-service/build/libs/inventory-service-1.0-SNAPSHOT.jar
java -jar shipping-service/build/libs/shipping-service-1.0-SNAPSHOT.jar

Test API

curl -X POST http://localhost:8081/api/orders \
  -H “Content-Type: application/json” \
  -d ‘{
    “userId”: “user123”,
    “productId”: “product456”,
    “quantity”: 2,
    “amount”: 100.0
  }’

Production Best Practices

✅ Essential Practices

1. Idempotency Everywhere — Use unique keys for all operations

2. Proper Error Handling — Catch and publish failure events

3. Comprehensive Logging — Include saga ID in all logs

4. Timeout Management — Set timeouts for all operations

5. Dead Letter Queues — Handle poison messages

6. State Persistence — Store saga state for recovery

❌ Avoid These Pitfalls

1. Business Logic in Orchestrator — Keep it in services

2. Synchronous HTTP Calls — Use async messaging only

3. Missing Compensation — Every action needs compensation

4. Ignoring Duplicates — Always implement idempotency

5. Poor Monitoring — Track all metrics from day one

Migration to Other Messaging Systems

Thanks to our abstraction layer, switching from Kafka to Pulsar is trivial:

@Component
@ConditionalOnProperty(name = “messaging.provider”, havingValue = “pulsar”)
public class PulsarMessagePublisher implements MessagePublisher {

    private final PulsarClient pulsarClient;

    @Override
    public <T extends DomainEvent> void publish(String topic, String key, T message) {
        Producer<T> producer = pulsarClient
            .newProducer(Schema.JSON(message.getClass()))
            .topic(topic)
            .create();

        producer.newMessage().key(key).value(message).send();
    }
}

Configuration change only:

messaging:
  provider: pulsar  # Changed from ‘kafka’

Zero business logic changes required!

Conclusion

We’ve built a production-ready SAGA orchestration system that demonstrates:

✨ Clean Architecture — Abstraction layer for technology independence
✨ Spring State Machine — Natural workflow modeling
✨ Kafka Integration — Reliable async messaging
✨ Idempotency — Handling duplicate messages
✨ Compensation Logic — Proper rollback mechanisms
✨ Comprehensive Testing — Unit and integration tests
✨ Production Monitoring — Metrics and observability

Key Takeaways

1. Abstraction is Power — Decouple from infrastructure for flexibility

2. State Machines are Natural — Perfect for modeling SAGA workflows

3. Design for Failure — Compensating transactions are critical

4. Test Thoroughly — Both success and failure scenarios

5. Monitor Everything — You can’t fix what you can’t see

Next Steps

Get hands-on:

git clone https://github.com/codeexpert07/spring-saga-orchestrator
cd spring-saga-orchestrator
./gradlew clean build

Extend the implementation:

• Add notification service

• Implement saga history visualization

• Add parallel execution branches

• Build saga replay mechanism

Learn more:

• SAGA Design Pattern Fundamentals

• Spring State Machine Basics

• GitHub Repository

Final Thoughts

Building distributed systems is challenging, but patterns like SAGA orchestration provide structure for managing that complexity. The abstractions we’ve built today aren’t just for SAGAs — they’re principles of good software design that will serve you across many projects.

Remember: eventual consistency is not a limitation; it’s a design choice that enables scalability and resilience.

Found this helpful?
⭐ Star the GitHub repository
💬 Share your implementation stories below
🔗 Connect with me for more distributed systems deep dives

Thank you for reading! Drop a comment if you have questions or want to share your SAGA implementation experiences.

Happy coding! 🚀

About the Author

Software architect passionate about distributed systems, microservices patterns, and building scalable solutions.

Connect:

• GitHub: @codeexpert07

• Substack: @codeexperts07
